Swimming pool vacuum spiral hose machine

Share to:

Swimming Pool Vacuum Hose Extrusion Machine
1.General information:
a. Applied materials: HDPE,EVA;
b. capacity: 40-60KG/HR
3. consisting parts of extruder:
1. AF65 strip extruder: one 2. AF30 color extruder: one ; 3. strip die head: one ; 4. water cooling tank; 5. dewater lower: one 6. glue extruder and strip haul-off unit: one; 7. spiral forming machine: one 8. haul-off unit: one 9. cutter and stack table 9. PLC control system: one set
III. Our promise: Swimming pool vacuum hose extrusion line is one of our matured, advantageous and competitive production lines, it could produce spiral vacuum hose and reinforced vacuum pipe, we have rich practical operation experience;
IV. Brief introduction of swimming pool spiral vacuum hose:
a. Ideal for keeping your pool water crystal clear
b.Abrasion resistant outer shell
c. Protected against UV and chemicals
d. Spiral-wound construction for strength, flexibility and maximum flow rate

Price: $ 0 / SET

Availability:

Quantity:

Model:
AF65&30&30 AF65&30
Brand:
YAOAN
Code:
8477209000
Net power:
47-55kw
Bucket capacity:
35-60kg/hr
Working weight:
4500kgs

Product Description

Swimming Pool Vacuum Hose Extrusion Machine

Swimming pool vacuum hose extrusion line is one of our matured, advantageous and competitive production lines, it could produce piral vacuum hoses and reinforced vacuum pipes, we have rich practical operation experience;

1. Gengeral information:

suitable raw material: HDPE AND EVA

output: 30-60kg/hr

Total power is 45-55KW; Power consumption: about 30kW/HR

2. machine configurations:

S/N	MACHINE NAME	motor size	quanity
1	65 extruder	22kw	1
2	30 extruder	2.2KW	1
3	4meter water tank		1
4	dewater blower		1
5	strip haul-off unit	1.5KW	1
6	30 extruder	2.2KW	1
7	spiral forming machine	2.2KW	1
8	pipe haul-off unit	1.1KW	1
9	cutter and stack table	2.2KW	1
9	PLC control system		1

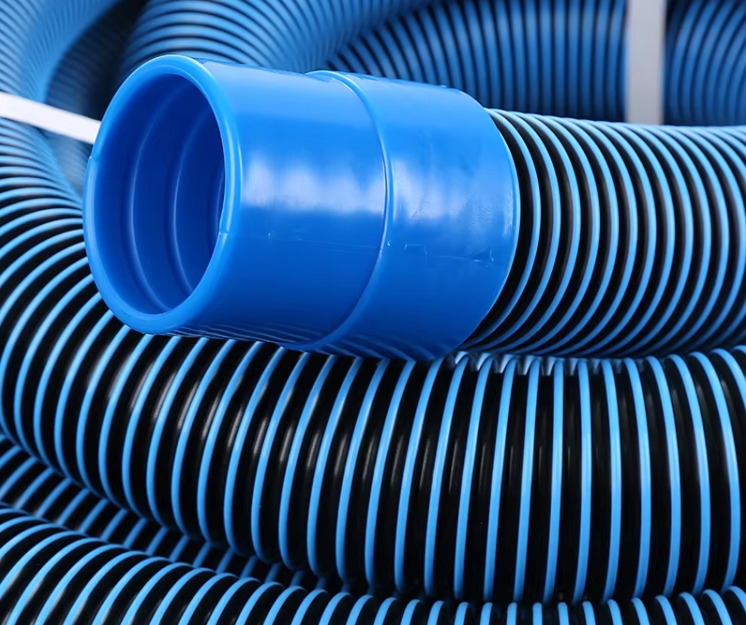

3. features of swimming pool spiral vacuum pipe

a. the vacuum pipe is High quality construction for years of continuous use

b. Ideal for keeping your pool water crystal clear

c. Abrasion resistant outer shell

d. Protected against UV and chemicals

e. Spiral-wound construction for strength, flexibility and maximum flow rate
