AF35, AF45, AF65
PMMA Acrylic rod, Bubble Bar Extrusion Machine

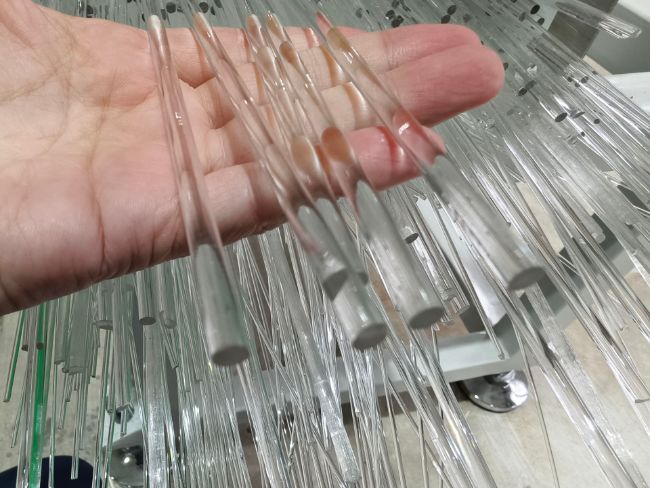

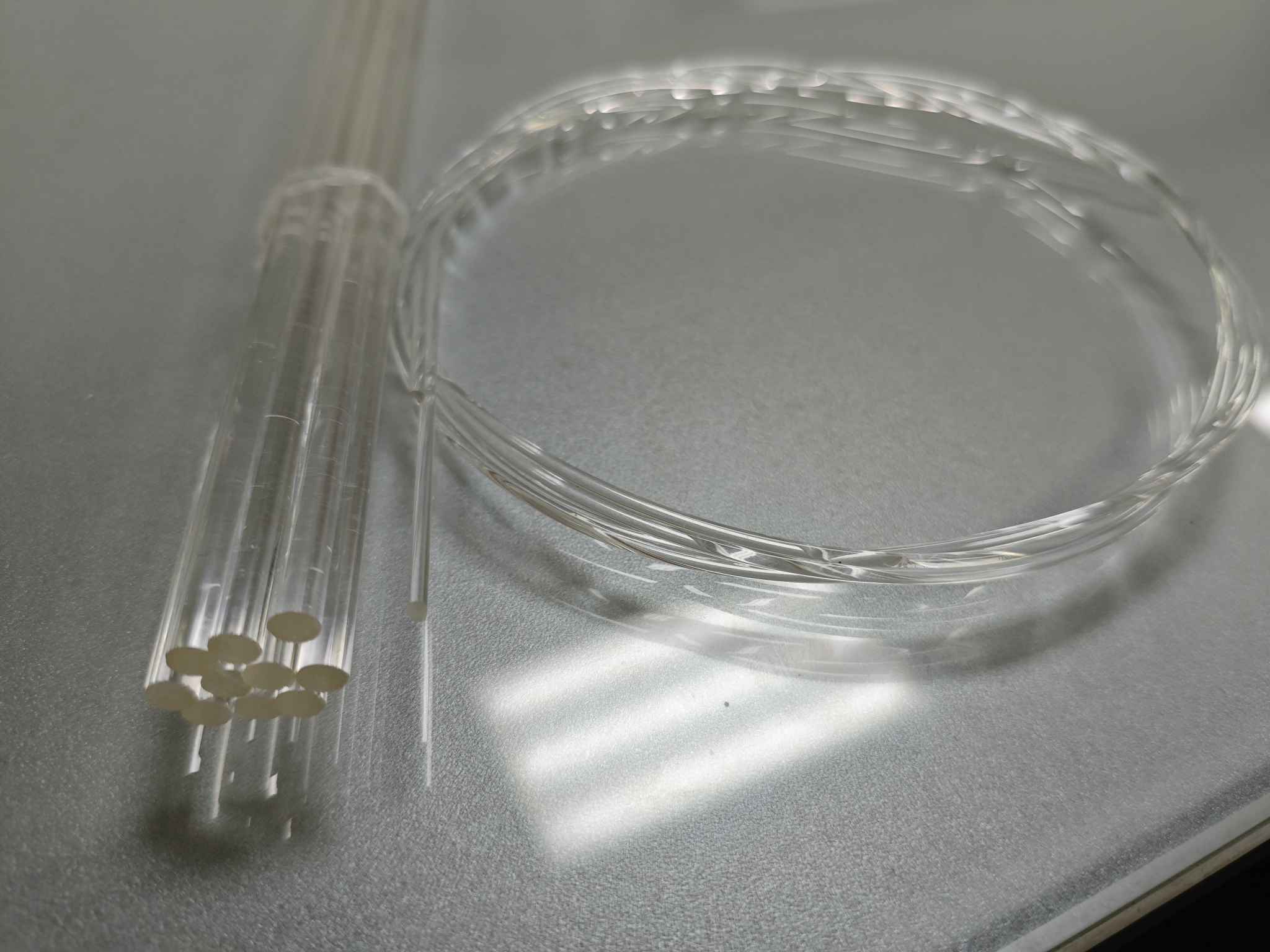

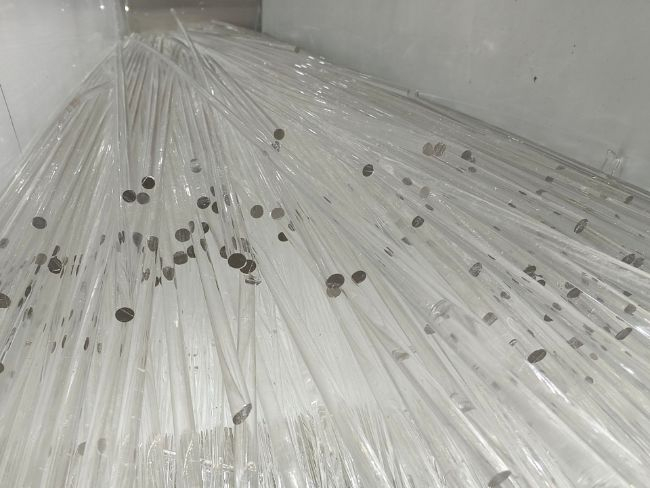

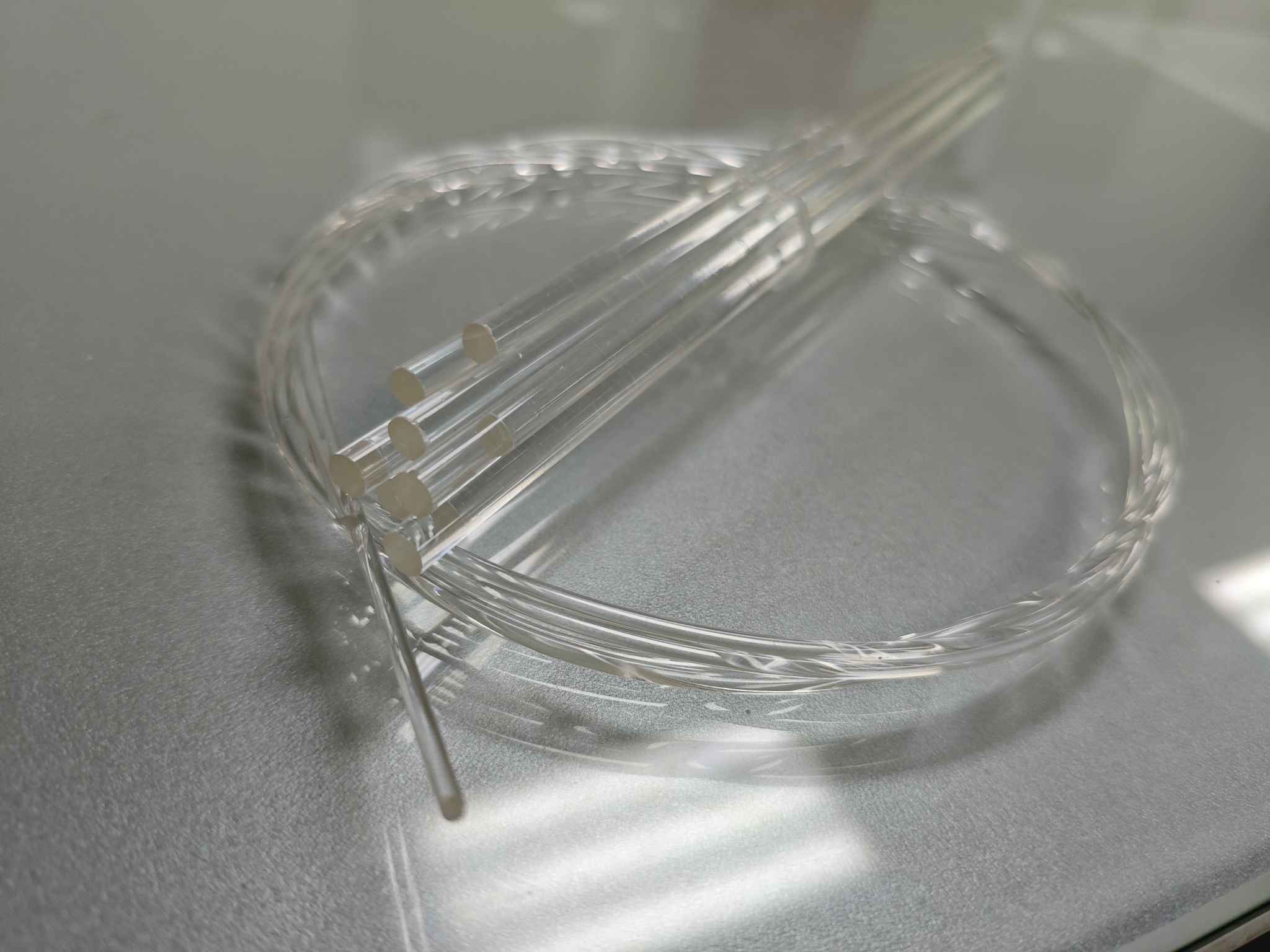

Acrylic bar extrusion line can make PMMA acrylic transparent bars, bubble bars, profile bar, twisted bar, aluminum alloy tube reinforced bar, etc. YAOAN has rich experience in this kind of machines.

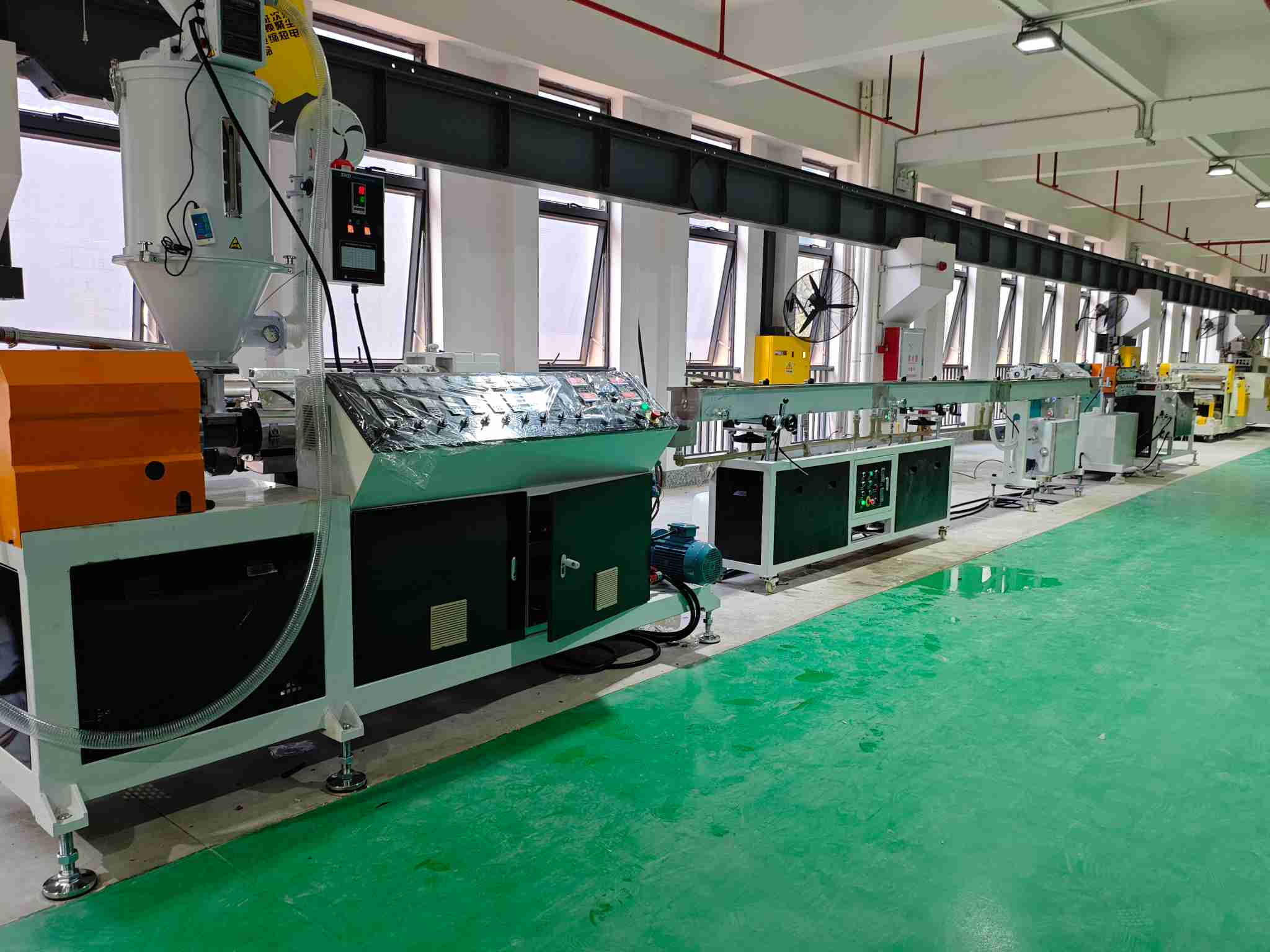

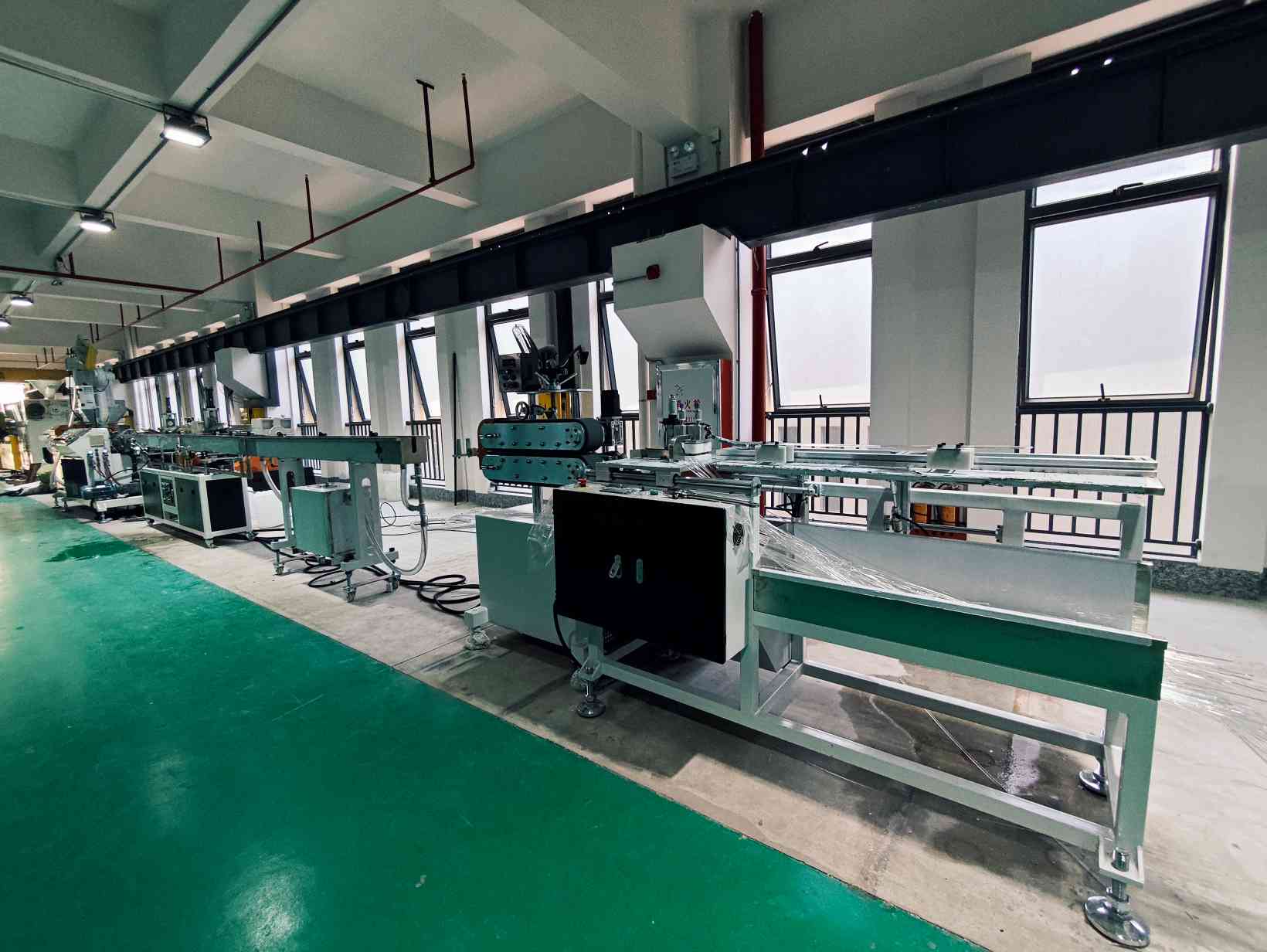

The machine consists of single-screw extruder, die head cooling water tank, hual off machine and cutting machine.
Applied materials: PMMA ;
YAOAN machine have serveral advantages:
a.. stable products, good surface luster, good transparency, no hollow defects.
b. low energy consumption; this saves production cost and improves the competitiveness of the products.
c. cutting precision within 0.5mm, cut end is neat, chip-less, higher efficiency;
d. Special screw for PMMA material, perfect plasticizing, to ensure the finished products without crystallized dot, without pulling mark, without vibration mark, with high light transmittance, and high transparency.
Composition & technical details of PMMA Rod Bar Stick Making Machine:
| MACHINE PARTS | QUANTITY |
| MAIN EXTRUDER | 1 SET |
| MELT PUMP | 1 SET |
| EXTRUDING DIE | 1 SET |
| WATER COOLING TANK | 1 SET |
| SYNCHRONIZED DUAL BELTS PULLING MACHINE | 1 SET |
| FIXED LENGTH PRECISE CUTTER AND STORAGE MACHINE | 1 SET |
| SINGLE SCREW EXTRUDER OR TWO EXTRUDERS CO-EXTRUSION | (1) Screw model: AF-50 available for option; L/D: 34:1; Separated type screw is adopted as it is especially suitable for PMMA transparent material, milky material and diffusion material for production, so as to lower down raw materials cost largely. (2) AC motor drive, with enough motive power and quite stable in running; Temperature control meter: intelligent type; the precision could reach +/-1 degree; (3) Heating control zone: 5 zone; According to different extruders. |
| EXTRUDING DIE AND CALIBRATION MOULD | Special S136H mirror surface steel for dies, the surface of the extruding dies is mirror polished. |
| WATER COOLING TANK | (1) Stainless steel tank; 3D adjusting machine frame, with 12-way vacuum, 12 way cooling water; (2) circular water cooling tank Provide water to calibration mould Water pump: 0.37KW |
| SYNCHRONIZED DUAL BELTS PULLING MACHINE | (1) Open-close, up-down adjusting; belt workable length 1 meter, constant stable puller; (2) high wear-resistant foamed surface PU multi-wedge belt; (3) high precision frequency conversion controller; tractor speed 0-15m/minute stepless adjustable. (4) Single motor or double motor available for option; Power: 0.75KWX2 or 2.2KW |
| FIXED LENGTH PRECISE CUTTER AND STORAGE MACHINE | (1) Innovative cutting technology; Optical type length-setting device; Solve the online-precise-cutting difficulty in this industry; (2) Online cutting precision: within 0.5mm; (3) No burrs cutting, without powder and dust; No need the second time precise cutting; (4) SIEMENS PLC control with display screen Easy to set value and operate. |
